Bag Filters

Fm

The FM modular filter is particularly suitable for suction and filtration of dust and chips from woodworking. The filter works under positive pressure.

Enquire

Bag Filters

The Fm range

Economical, compact and functional: the FM line of bag filters is particularly suited to environments polluted by various dusts and wood chips. Modular construction adaptable to any need, with automatic cleaning by electromechanical vibration. The FM filter works under positive pressure and is built from galvanized panels that can be assembled into standard units from 1 to 5 metres and beyond.

FmStandard modular positive-pressure bag filter for woodworking dust and chips.MfmCompact, high surface area bag filter for small spaces, with integrated electromechanical cleaning.Fm READYReady configuration of the FM modular bag-filter line.

Economical and compact: minimum footprint and maximum output for large filter surfaces
Modular: constructed of galvanized panels easily assembled into standard units of 1 to 5 metres and more
Easily disassembled and transportable
Sleeves with different weights depending on the specific processing
Open-bladed pressure fan for passing chips and dust
A vibrating sleeve cleaning system can be installed upon request
Available in different versions according to specific needs

Enquire about this product

Product gallery

Fm range

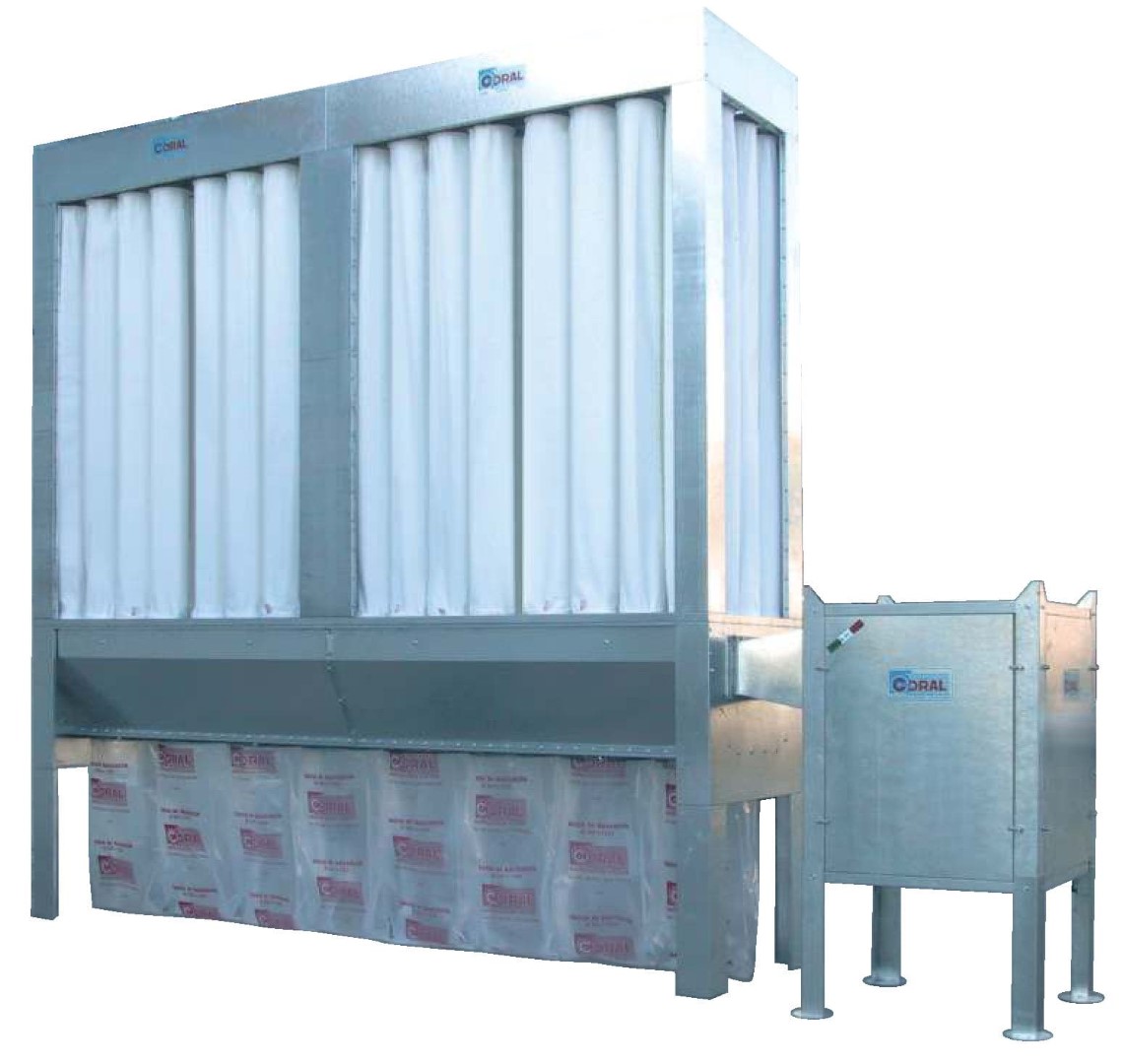

Fm

The FM modular filter for suction and filtration of dust and chips from woodworking.

Discover

Fm range

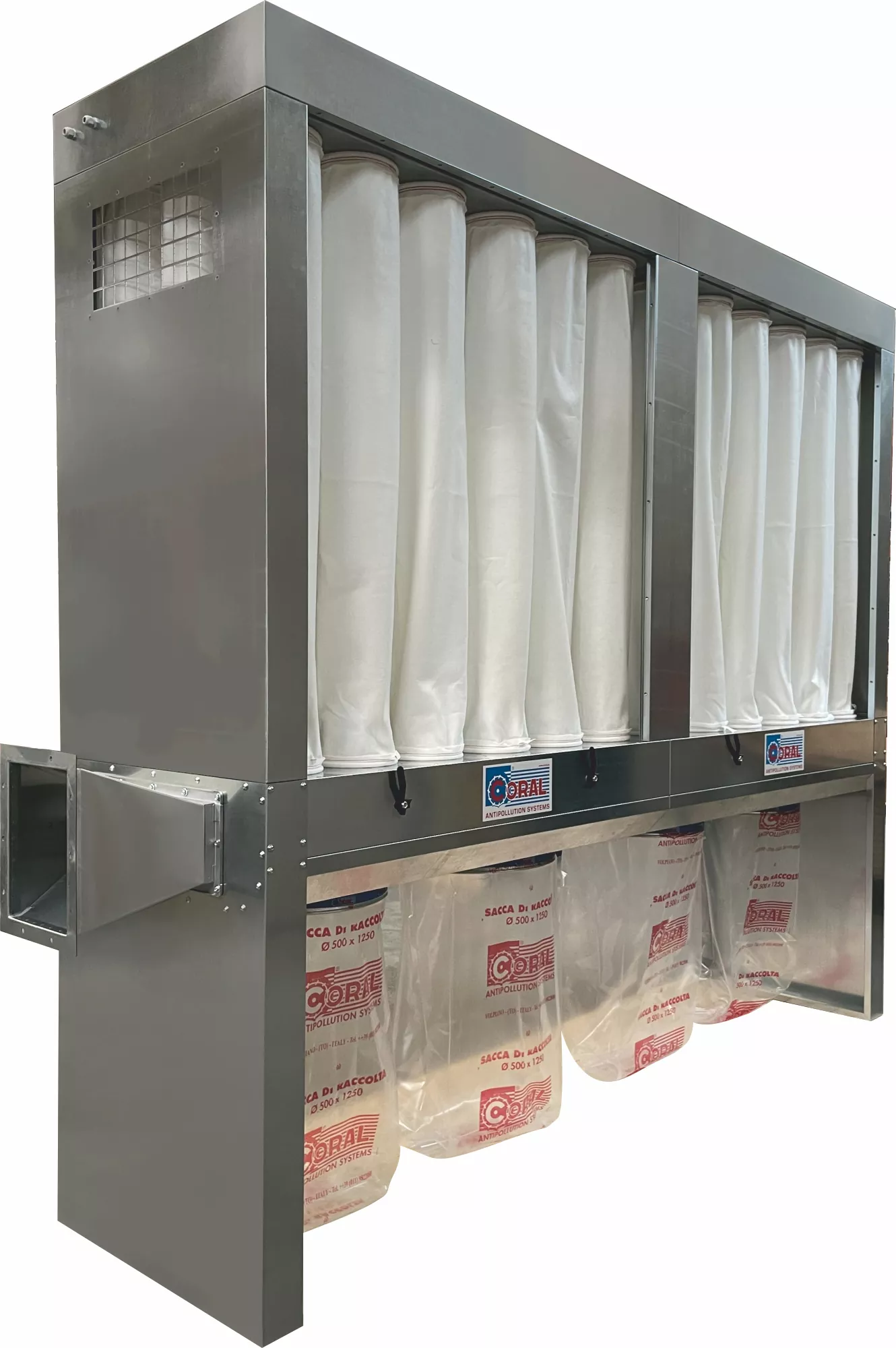

Mfm

Compact, high surface area filter unit for small spaces, without sacrificing features.

Discover

Fm range

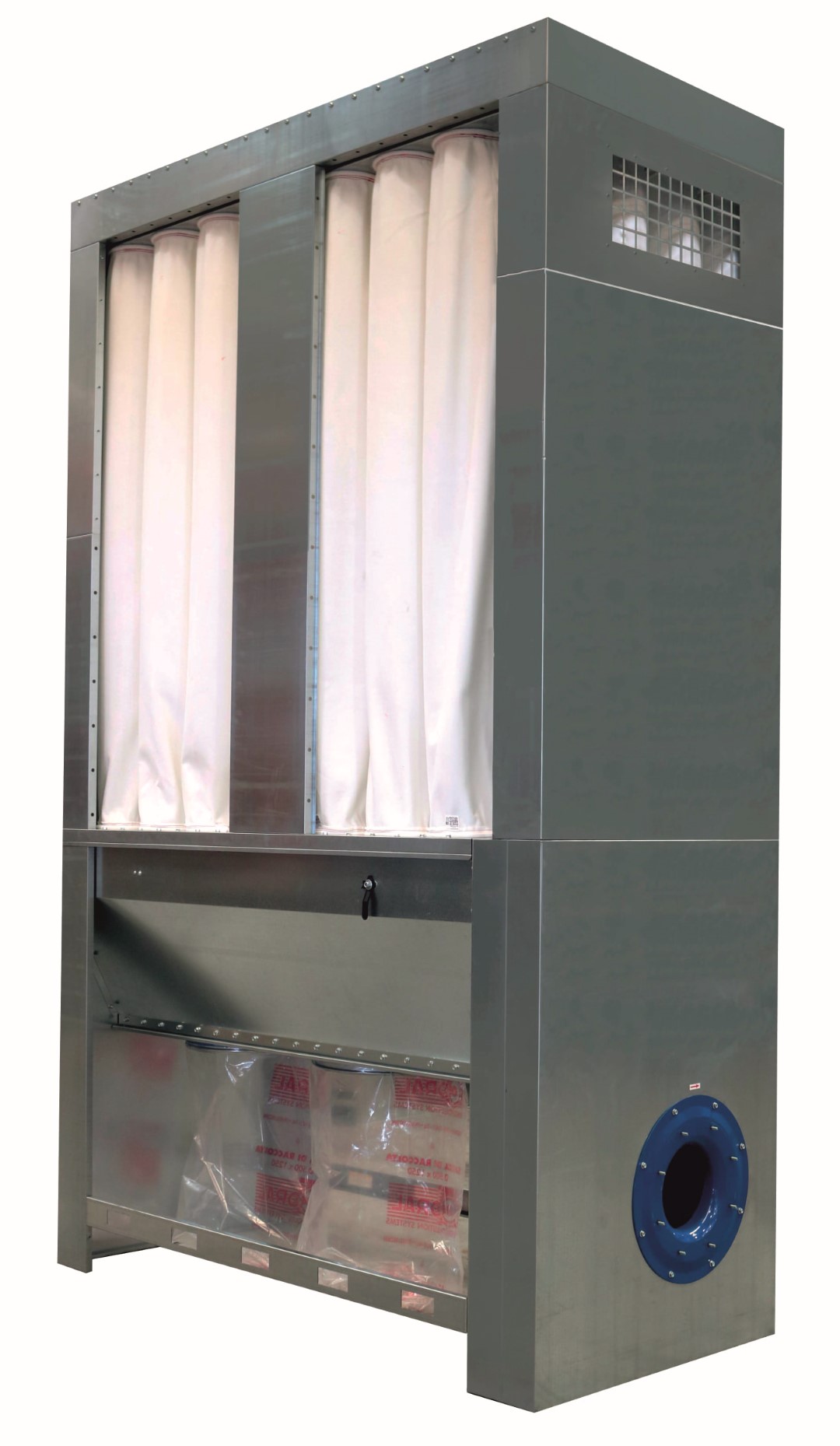

Fm READY

The most compact solution for suction and filtration of dust and chips.

Discover

Specifications

At a glance

50+Configurations

220 mmSleeve diameter

Positive pressureOperating mode

OptionalElectromechanical motor-vibrator cleaning

Fm specifications

Model	Filter Type	Version	Panelled	Sleeves (nr)	Sleeve height (mm)	Sleeve diameter (mm)	Bags (nr)	Bag capacity (m³)	Cleaning	Motovibrators (nr.)	Motor vibrator power at 50 Hz (kW)
FM 1/NB	Sleeves	Entry from below	No	16	2000	220	2	0,49	No	-	-
FM 1/NBP	Sleeves	Entry from below	Yes	16	2000	220	2	0,49	Electromechanics with motor vibrator	1	0,095
FM 2/NBP	Sleeves	Entry from below	Yes	32	2000	220	4	0,98	Electromechanics with motor vibrator	1	0,095
FM 3/NBP	Sleeves	Entry from below	Yes	48	2000	220	6	1,47	Electromechanics with motor vibrator	1	0,095
FM 4/NBP	Sleeves	Entry from below	Yes	64	2000	220	8	1,96	Electromechanics with motor vibrator	1	0,095
FM 5/NBP	Sleeves	Entry from below	Yes	80	2000	220	10	2,45	Electromechanics with motor vibrator	1	0,095
FM 1/RBP	Sleeves	Entry from below	Yes	16	1500	220	2	0,49	Electromechanics with motor vibrator	1	0,095
FM 5/HBP	Sleeves	Entry from below	Yes	80	2500	220	10	2,45	Electromechanics with motor vibrator	1	0,095
FM 1/RAP	Sleeves	Entry from above	Yes	16	1500	220	2	0,49	No	-	-
FM 5/HAP	Sleeves	Entry from above	Yes	80	2500	220	10	2,45	No	-	-

Handles

Pollutants captured

DustComposite materialsFibresWood and paper chips
