← Part of the Fm range
Mfm
Compact, high surface area bag filter for small spaces, with integrated electromechanical cleaning.
Bag Filters
The Mfm range
Compact, high surface area filter unit allows installation in small spaces without sacrificing its style and high-efficiency technical features. Built with sturdy galvanized panels, it is designed for easy and quick installation. Integrated cleaning system, allows for maintaining the maximum performance of the entire suction and filtration system.
- Minimal footprint, also suitable for small spaces
- Automatic sleeve cleaning by electromechanical moto-vibrator
- By far the most economical solution among high surface area filtration units

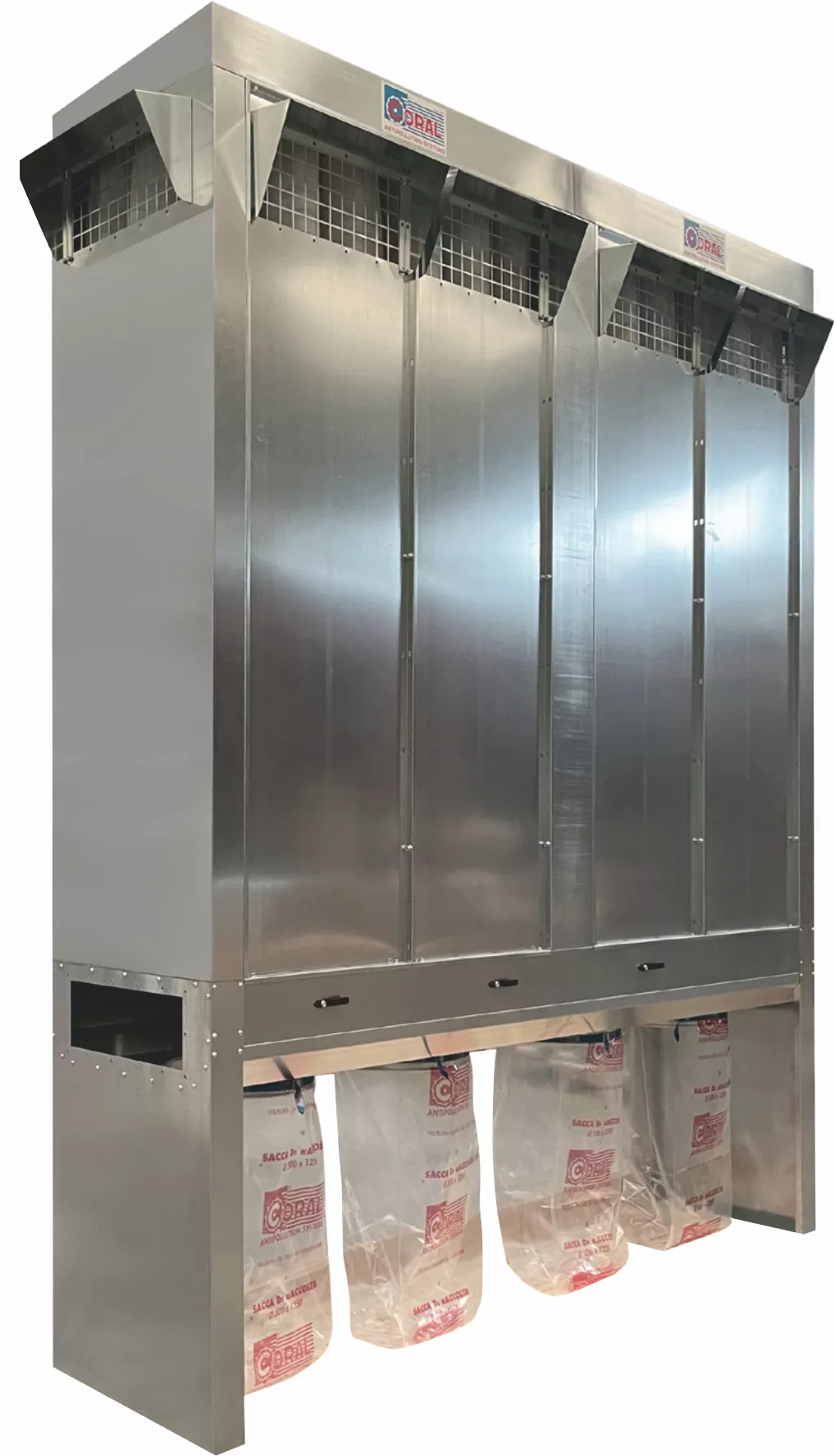

Product gallery

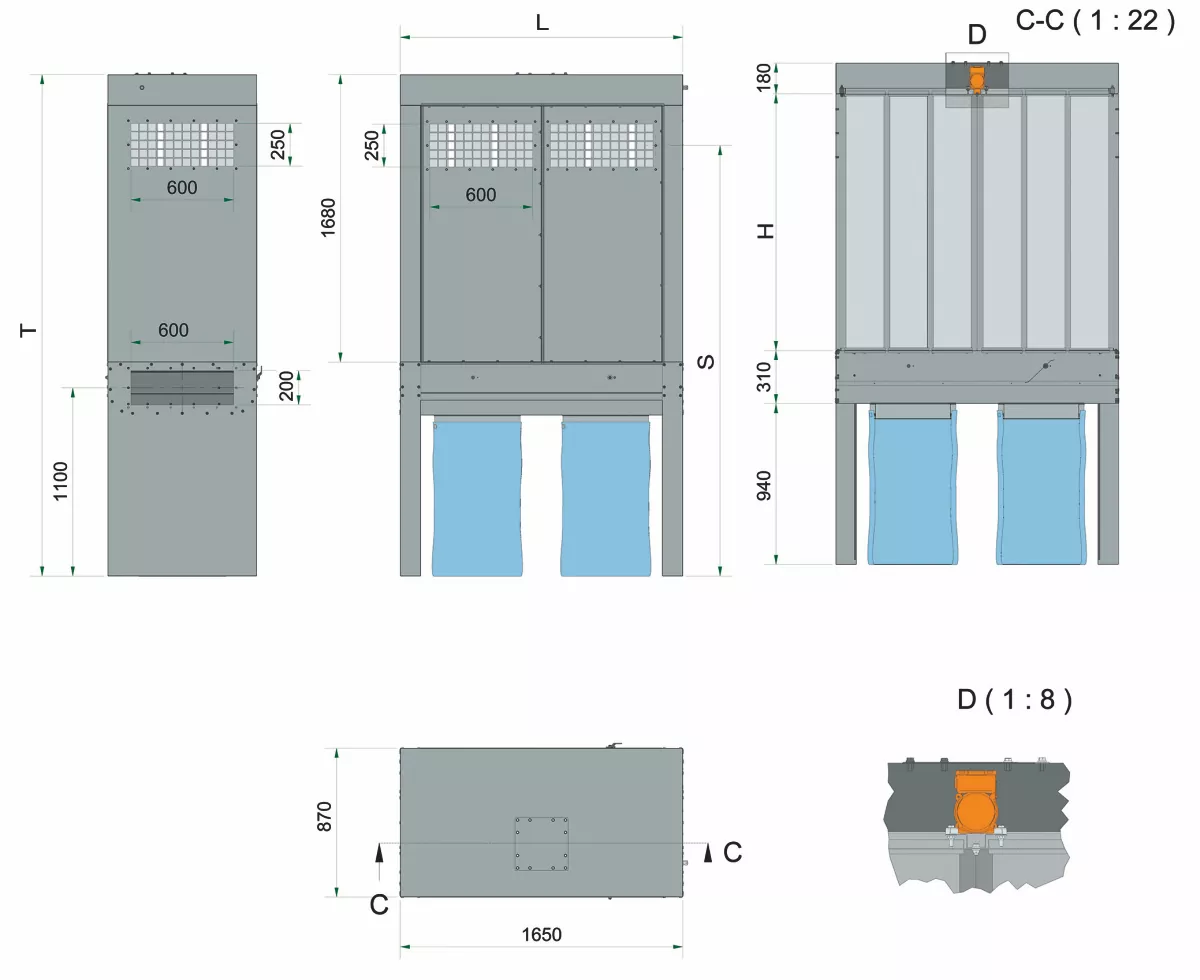

Technical drawings
Mfm specifications
| Model | Filter Type | Version | Sleeves (nr) | Sleeve height (mm) | Sleeve diameter (mm) | Bags (nr) | Bag height (mm) | Bag diameter (mm) | Bag capacity (m3) | Filter material | Cleaning | Motovibrators (nr.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfm 1HP | Sleeves | Panelled | 9 | 2500 | 220 | 1 | 1250 | 500 | 0,25 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 2HP | Sleeves | Panelled | 18 | 2500 | 220 | 2 | 1250 | 500 | 0,49 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 3HP | Sleeves | Panelled | 27 | 2500 | 220 | 3 | 1250 | 500 | 0,74 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 4HP | Sleeves | Panelled | 36 | 2500 | 220 | 4 | 1250 | 500 | 0,98 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 1B | Sleeves | Standard | 9 | 1500 | 220 | 1 | 1250 | 500 | 0,25 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 2B | Sleeves | Standard | 18 | 1500 | 220 | 2 | 1250 | 500 | 0,49 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 3B | Sleeves | Standard | 27 | 1500 | 220 | 3 | 1250 | 500 | 0,74 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 4B | Sleeves | Standard | 36 | 1500 | 220 | 4 | 1250 | 500 | 0,98 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 1H | Sleeves | Standard | 9 | 2500 | 220 | 1 | 1250 | 500 | 0,25 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 2H | Sleeves | Standard | 18 | 2500 | 220 | 2 | 1250 | 500 | 0,49 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 3H | Sleeves | Standard | 27 | 2500 | 220 | 3 | 1250 | 500 | 0,74 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 4H | Sleeves | Standard | 36 | 2500 | 220 | 4 | 1250 | 500 | 0,98 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 1BP | Sleeves | Panelled | 9 | 1500 | 220 | 1 | 1250 | 500 | 0,25 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 2BP | Sleeves | Panelled | 18 | 1500 | 220 | 2 | 1250 | 500 | 0,49 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 3BP | Sleeves | Panelled | 27 | 1500 | 220 | 3 | 1250 | 500 | 0,74 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 4BP | Sleeves | Panelled | 36 | 1500 | 220 | 4 | 1250 | 500 | 0,98 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 1N | Sleeves | Standard | 9 | 2000 | 220 | 1 | 1250 | 500 | 0,25 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 2N | Sleeves | Standard | 18 | 2000 | 220 | 2 | 1250 | 500 | 0,49 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 3N | Sleeves | Standard | 27 | 2000 | 220 | 3 | 1250 | 500 | 0,74 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 4N | Sleeves | Standard | 36 | 2000 | 220 | 4 | 1250 | 500 | 0,98 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 1NP | Sleeves | Panelled | 9 | 2000 | 220 | 1 | 1250 | 500 | 0,25 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 2NP | Sleeves | Panelled | 18 | 2000 | 220 | 2 | 1250 | 500 | 0,49 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 3NP | Sleeves | Panelled | 27 | 2000 | 220 | 3 | 1250 | 500 | 0,74 | Polyester | Electromechanics with motor vibrator | 1 |
| Mfm 4NP | Sleeves | Panelled | 36 | 2000 | 220 | 4 | 1250 | 500 | 0,98 | Polyester | Electromechanics with motor vibrator | 1 |
